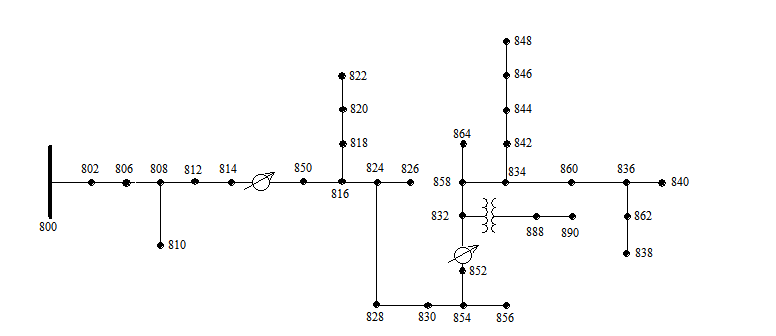

IEEE34节点算例

这是用opendss仿真的 34节点算例， IEEE34节点算例，部分参数如下：

立即下载

预览截图

应用介绍

这是用opendss仿真的 34节点算例， IEEE34节点算例，

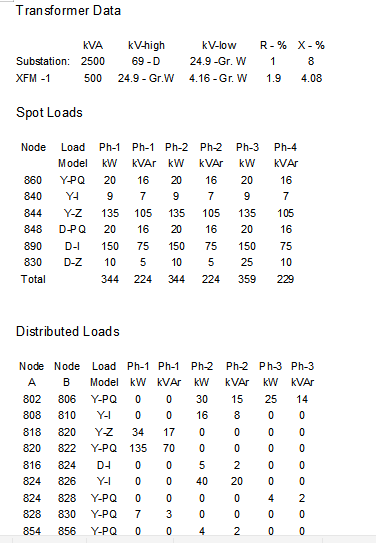

部分参数如下：

阻抗参数如下;

--------- Z & B Matrices Before Changes ---------

Z (R +jX) in ohms per mile

1.3368 1.3343 0.2101 0.5779 0.2130 0.5015

1.3238 1.3569 0.2066 0.4591

1.3294 1.3471

B in micro Siemens per mile

5.3350 -1.5313 -0.9943

5.0979 -0.6212

4.8880

Configuration 301:

Z (R +jX) in ohms per mile

1.9300 1.4115 0.2327 0.6442 0.2359 0.5691

1.9157 1.4281 0.2288 0.5238

1.9219 1.4209

B in micro Siemens per mile

5.1207 -1.4364 -0.9402

4.9055 -0.5951

4.7154

Configuration 302:

Z (R +jX) in ohms per mile

2.7995 1.4855 0.0000 0.0000 0.0000 0.0000

0.0000 0.0000 0.0000 0.0000

0.0000 0.0000

B in micro Siemens per mile

4.2251 0.0000 0.0000

0.0000 0.0000

0.0000

Configuration 303:

Z (R +jX) in ohms per mile

0.0000 0.0000 0.0000 0.0000 0.0000 0.0000

2.7995 1.4855 0.0000 0.0000

0.0000 0.0000

B in micro Siemens per mile

0.0000 0.0000 0.0000

4.2251 0.0000

0.0000

Configuration 304:

Z (R +jX) in ohms per mile

0.0000 0.0000 0.0000 0.0000 0.0000 0.0000

1.9217 1.4212 0.0000 0.0000

0.0000 0.0000

B in micro Siemens per mile

0.0000 0.0000 0.0000

4.3637 0.0000

0.0000

潮流计算结果如下：

Power Flow Results

- R A D I A L F L O W S U M M A R Y - DATE: 6-24-2004 AT 16:34:11 HOURS ---

SUBSTATION: IEEE 34; FEEDER: IEEE 34

-------------------------------------------------------------------------------

SYSTEM PHASE PHASE PHASE TOTAL

INPUT -------(A)-------|-------(B)-------|-------(C)-------|------------------

kW : 759.136 | 666.663 | 617.072 | 2042.872

kVAr : 171.727 | 90.137 | 28.394 | 290.258

kVA : 778.318 | 672.729 | 617.725 | 2063.389

PF : .9754 | .9910 | .9989 | .9901

LOAD --(A-N)----(A-B)-|--(B-N)----(B-C)-|--(C-N)----(C-A)-|---WYE-----DELTA--

kW : 359.9 246.4| 339.3 243.3| 221.8 359.0| 921.0 848.8

TOT : 606.322 | 582.662 | 580.840 | 1769.824

| | |

kVAr : 230.9 128.7| 216.9 128.7| 161.8 184.6| 609.6 441.9

TOT : 359.531 | 345.609 | 346.407 | 1051.547

| | |

kVA : 427.6 278.0| 402.7 275.3| 274.6 403.7| 1104.5 957.0

TOT : 704.903 | 677.452 | 676.293 | 2058.647

| | |

PF : .8417 .8864| .8425 .8840| .8078 .8894| .8339 .8870

TOT : .8601 | .8601 | .8589 | .8597

LOSSES ------(A)-------|-------(B)-------|-------(C)-------|------------------

kW : 114.836 | 80.389 | 77.824 | 273.049

kVAr : 14.200 | 10.989 | 9.810 | 34.999

kVA : 115.711 | 81.137 | 78.440 | 275.283

CAPAC --(A-N)----(A-B)-|--(B-N)----(B-C)-|--(C-N)----(C-A)-|---WYE-----DELTA--

R-kVA: 250.0 .0| 250.0 .0| 250.0 .0| 750.0 .0

TOT : 250.000 | 250.000 | 250.000 | 750.000

| | |

A-kVA: 265.7 .0| 264.8 .0| 265.9 .0| 796.3 .0

TOT : 265.658 | 264.760 | 265.869 | 796.287

--- V O L T A G E P R O F I L E ---- DATE: 6-24-2004 AT 16:34:18 HOURS ----

SUBSTATION: IEEE 34; FEEDER: IEEE 34

-------------------------------------------------------------------------------

NODE | MAG ANGLE | MAG ANGLE | MAG ANGLE |mi.to SR

-------------------------------------------------------------------------------

______|_______ A-N ______ |_______ B-N _______ |_______ C-N _______ |

800 | 1.0500 at .00 | 1.0500 at -120.00 | 1.0500 at 120.00 | .000

802 | 1.0475 at -.05 | 1.0484 at -120.07 | 1.0484 at 119.95 | .489

806 | 1.0457 at -.08 | 1.0474 at -120.11 | 1.0474 at 119.92 | .816

808 | 1.0136 at -.75 | 1.0296 at -120.95 | 1.0289 at 119.30 | 6.920

810 | | 1.0294 at -120.95 | | 8.020

812 | .9763 at -1.57 | 1.0100 at -121.92 | 1.0069 at 118.59 | 14.023

814 | .9467 at -2.26 | .9945 at -122.70 | .9893 at 118.01 | 19.653

RG10 | 1.0177 at -2.26 | 1.0255 at -122.70 | 1.0203 at 118.01 | 19.654

850 | 1.0176 at -2.26 | 1.0255 at -122.70 | 1.0203 at 118.01 | 19.655

816 | 1.0172 at -2.26 | 1.0253 at -122.71 | 1.0200 at 118.01 | 19.714

818 | 1.0163 at -2.27 | | | 20.038

820 | .9926 at -2.32 | | | 29.157

822 | .9895 at -2.33 | | | 31.760

824 | 1.0082 at -2.37 | 1.0158 at -122.94 | 1.0116 at 117.76 | 21.648

826 | | 1.0156 at -122.94 | | 22.222

828 | 1.0074 at -2.38 | 1.0151 at -122.95 | 1.0109 at 117.75 | 21.807

830 | .9894 at -2.63 | .9982 at -123.39 | .9938 at 117.25 | 25.678

854 | .9890 at -2.64 | .9978 at -123.40 | .9934 at 117.24 | 25.777

852 | .9581 at -3.11 | .9680 at -124.18 | .9637 at 116.33 | 32.752

RG11 | 1.0359 at -3.11 | 1.0345 at -124.18 | 1.0360 at 116.33 | 32.752

832 | 1.0359 at -3.11 | 1.0345 at -124.18 | 1.0360 at 116.33 | 32.754

858 | 1.0336 at -3.17 | 1.0322 at -124.28 | 1.0338 at 116.22 | 33.682

834 | 1.0309 at -3.24 | 1.0295 at -124.39 | 1.0313 at 116.09 | 34.786

842 | 1.0309 at -3.25 | 1.0294 at -124.39 | 1.0313 at 116.09 | 34.839

844 | 1.0307 at -3.27 | 1.0291 at -124.42 | 1.0311 at 116.06 | 35.095

846 | 1.0309 at -3.32 | 1.0291 at -124.46 | 1.0313 at 116.01 | 35.784

848 | 1.0310 at -3.32 | 1.0291 at -124.47 | 1.0314 at 116.00 | 35.885

860 | 1.0305 at -3.24 | 1.0291 at -124.39 | 1.0310 at 116.09 | 35.169

836 | 1.0303 at -3.23 | 1.0287 at -124.39 | 1.0308 at 116.09 | 35.677

840 | 1.0303 at -3.23 | 1.0287 at -124.39 | 1.0308 at 116.09 | 35.839

862 | 1.0303 at -3.23 | 1.0287 at -124.39 | 1.0308 at 116.09 | 35.730

838 | | 1.0285 at -124.39 | | 36.650

864 | 1.0336 at -3.17 | | | 33.989

XF10 | .9997 at -4.63 | .9983 at -125.73 | 1.0000 at 114.82 | 32.754

888 | .9996 at -4.64 | .9983 at -125.73 | 1.0000 at 114.82 | 32.754

890 | .9167 at -5.19 | .9235 at -126.78 | .9177 at 113.98 | 34.754

856 | | .9977 at -123.41 | | 30.195

----------- VOLTAGE REGULATOR DATA ---- DATE: 6-24-2004 AT 16:34:22 HOURS --

SUBSTATION: IEEE 34; FEEDER: IEEE 34

_______________________________________________________________________________

[NODE]--[VREG]-----[SEG]------[NODE] MODEL OPT BNDW

814 RG10 850 850 Phase A & B & C, Wye RX 2.00

........................................................................

PHASE LDCTR VOLT HOLD R-VOLT X-VOLT PT RATIO CT RATE TAP

1 122.000 2.700 1.600 120.00 100.00 12

2 122.000 2.700 1.600 120.00 100.00 5

3 122.000 2.700 1.600 120.00 100.00 5

_______________________________________________________________________________

[NODE]--[VREG]-----[SEG]------[NODE] MODEL OPT BNDW

852 RG11 832 832 Phase A & B & C, Wye RX 2.00

........................................................................

PHASE LDCTR VOLT HOLD R-VOLT X-VOLT PT RATIO CT RATE TAP

1 124.000 2.500 1.500 120.00 100.00 13

2 124.000 2.500 1.500 120.00 100.00 11

3 124.000 2.500 1.500 120.00 100.00 12

- R A D I A L P O W E R F L O W --- DATE: 6-24-2004 AT 16:34:32 HOURS ---

SUBSTATION: IEEE 34; FEEDER: IEEE 34

-------------------------------------------------------------------------------

NODE VALUE PHASE A PHASE B PHASE C UNT O/L<

(LINE A) (LINE B) (LINE C) 60.%

---------------------*--------A-------*-------B-------*-------C-------*--------

NODE: 800 VOLTS: 1.050 .00 1.050 -120.00 1.050 120.00 MAG/ANG

kVll 24.900 NO LOAD OR CAPACITOR REPRESENTED AT SOURCE NODE

TO NODE 802 .......: 51.56 -12.74 44.57 -127.70 40.92 117.37 AMP/DG

<802 > LOSS= 3.472: ( 1.637) ( .978) ( .858) kW

---------------------*--------A-------*-------B-------*-------C-------*--------

NODE: 802 VOLTS: 1.047 -.05 1.048 -120.07 1.048 119.95 MAG/ANG

-LD: .00 .00 .00 .00 .00 .00 kW/kVR

kVll 24.900 CAP: .00 .00 .00 kVR

FROM NODE 800 .....: 51.58 -12.80 44.57 -127.76 40.93 117.31 AMP/DG

<802 > LOSS= 3.472: ( 1.637) ( .978) ( .858) kW

TO NODE 806 .......: 51.58 -12.80 44.57 -127.76 40.93 117.31 AMP/DG

<806 > LOSS= 2.272: ( 1.102) ( .618) ( .552) kW

---------------------*--------A-------*-------B-------*-------C-------*--------

NODE: 806 VOLTS: 1.046 -.08 1.047 -120.11 1.047 119.92 MAG/ANG

-LD: .00 .00 .00 .00 .00 .00 kW/kVR

kVll 24.900 CAP: .00 .00 .00 kVR

FROM NODE 802 .....: 51.59 -12.83 42.47 -126.83 39.24 118.52 AMP/DG

<806 > LOSS= 2.272: ( 1.102) ( .618) ( .552) kW

TO NODE 808 .......: 51.59 -12.83 42.47 -126.83 39.24 118.52 AMP/DG

<808 > LOSS= 41.339: ( 20.677) ( 10.780) ( 9.882) kW

---------------------*--------A-------*-------B-------*-------C-------*--------

NODE: 808 VOLTS: 1.014 -.75 1.030 -120.95 1.029 119.30 MAG/ANG

-LD: .00 .00 .00 .00 .00 .00 kW/kVR

kVll 24.900 CAP: .00 .00 .00 kVR

FROM NODE 806 .....: 51.76 -13.47 42.46 -127.59 39.28 117.76 AMP/DG

<808 > LOSS= 41.339: ( 20.677) ( 10.780) ( 9.882) kW

TO NODE 810 .......: 1.22 -144.62 AMP/DG

<810 > LOSS= .002: ( .002) kW

TO NODE 812 .......: 51.76 -13.47 41.30 -127.10 39.28 117.76 AMP/DG

<812 > LOSS= 47.531: ( 24.126) ( 11.644) ( 11.761) kW

---------------------*--------A-------*-------B-------*-------C-------*--------

NODE: 810 VOLTS: 1.029 -120.95 MAG/ANG

-LD: .00 .00 kW/kVR

kVll 24.900 CAP: .00 kVR

FROM NODE 808 .....: .00 .00 AMP/DG

<810 > LOSS= .002: ( .002) kW

- R A D I A L P O W E R F L O W --- DATE: 6-24-2004 AT 16:34:32 HOURS ---

SUBSTATION: IEEE 34; FEEDER: IEEE 34

-------------------------------------------------------------------------------

NODE VALUE PHASE A PHASE B PHASE C UNT O/L<

(LINE A) (LINE B) (LINE C) 60.%

---------------------*--------A-------*-------B-------*-------C-------*--------

NODE: 812 VOLTS: .976 -1.57 1.010 -121.92 1.007 118.59 MAG/ANG

-LD: .00 .00 .00 .00 .00 .00 kW/kVR

kVll 24.900 CAP: .00 .00 .00 kVR

FROM NODE 808 .....: 51.95 -14.18 41.29 -127.99 39.33 116.90 AMP/DG

<812 > LOSS= 47.531: ( 24.126) ( 11.644) ( 11.761) kW

TO NODE 814 .......: 51.95 -14.18 41.29 -127.99 39.33 116.90 AMP/DG

<814 > LOSS= 37.790: ( 19.245) ( 9.140) ( 9.404) kW

---------------------*--------A-------*-------B-------*-------C-------*--------

NODE: 814 VOLTS: .947 -2.26 .994 -122.70 .989 118.01 MAG/ANG

-LD: .00 .00 .00 .00 .00 .00 kW/kVR

kVll 24.900 CAP: .00 .00 .00 kVR

FROM NODE 812 .....: 52.10 -14.73 41.29 -128.69 39.37 116.23 AMP/DG

<814 > LOSS= 37.790: ( 19.245) ( 9.140) ( 9.404) kW

TO NODE RG10 .<VRG>.: 52.10 -14.73 41.29 -128.69 39.37 116.23 AMP/DG

<RG10 > LOSS= .000: ( .000) ( .000) ( .000) kW

---------------------*--------A-------*-------B-------*-------C-------*--------

NODE: RG10 VOLTS: 1.018 -2.26 1.026 -122.70 1.020 118.01 MAG/ANG

-LD: .00 .00 .00 .00 .00 .00 kW/kVR

kVll 24.900 CAP: .00 .00 .00 kVR

FROM NODE 814 <VRG>: 48.47 -14.73 40.04 -128.69 38.17 116.23 AMP/DG

<RG10 > LOSS= .000: ( .000) ( .000) ( .000) kW

TO NODE 850 .......: 48.47 -14.73 40.04 -128.69 38.17 116.23 AMP/DG

<850 > LOSS= .017: ( .008) ( .005) ( .005) kW

---------------------*--------A-------*-------B-------*-------C-------*--------

NODE: 850 VOLTS: 1.018 -2.26 1.026 -122.70 1.020 118.01 MAG/ANG

-LD: .00 .00 .00 .00 .00 .00 kW/kVR

kVll 24.900 CAP: .00 .00 .00 kVR

FROM NODE RG10 .....: 48.47 -14.73 40.04 -128.69 38.17 116.23 AMP/DG

<850 > LOSS= .017: ( .008) ( .005) ( .005) kW

TO NODE 816 .......: 48.47 -14.73 40.04 -128.69 38.17 116.23 AMP/DG

<816 > LOSS= .538: ( .254) ( .145) ( .139) kW

---------------------*--------A-------*-------B-------*-------C-------*--------

NODE: 816 VOLTS: 1.017 -2.26 1.025 -122.71 1.020 118.01 MAG/ANG

-LD: .00 .00 .00 .00 .00 .00 kW/kVR

kVll 24.900 CAP: .00 .00 .00 kVR

FROM NODE 850 .....: 48.47 -14.74 40.04 -128.70 38.17 116.23 AMP/DG

<816 > LOSS= .538: ( .254) ( .145) ( .139) kW

TO NODE 818 .......: 13.02 -26.69 AMP/DG

<818 > LOSS= .154: ( .154) kW

TO NODE 824 .......: 35.83 -10.42 40.04 -128.70 38.17 116.23 AMP/DG

<824 > LOSS= 14.181: ( 4.312) ( 5.444) ( 4.425) kW

- R A D I A L P O W E R F L O W --- DATE: 6-24-2004 AT 16:34:32 HOURS ---

SUBSTATION: IEEE 34; FEEDER: IEEE 34

-------------------------------------------------------------------------------

NODE VALUE PHASE A PHASE B PHASE C UNT O/L<

(LINE A) (LINE B) (LINE C) 60.%

---------------------*--------A-------*-------B-------*-------C-------*--------

NODE: 818 VOLTS: 1.016 -2.27 MAG/ANG

-LD: .00 .00 kW/kVR

kVll 24.900 CAP: .00 kVR

FROM NODE 816 .....: 13.03 -26.77 AMP/DG

<818 > LOSS= .154: ( .154) kW

TO NODE 820 .......: 13.03 -26.77 AMP/DG

<820 > LOSS= 3.614: ( 3.614) kW

---------------------*--------A-------*-------B-------*-------C-------*--------

NODE: 820 VOLTS: .993 -2.32 MAG/ANG

-LD: .00 .00 kW/kVR

kVll 24.900 CAP: .00 kVR

FROM NODE 818 .....: 10.62 -28.98 AMP/DG

<820 > LOSS= 3.614: ( 3.614) kW

TO NODE 822 .......: 10.62 -28.98 AMP/DG

<822 > LOSS= .413: ( .413) kW

---------------------*--------A-------*-------B-------*-------C-------*--------

NODE: 822 VOLTS: .990 -2.33 MAG/ANG

-LD: .00 .00 kW/kVR

kVll 24.900 CAP: .00 kVR

FROM NODE 820 .....: .00 .00 AMP/DG

<822 > LOSS= .413: ( .413) kW

---------------------*--------A-------*-------B-------*-------C-------*--------

NODE: 824 VOLTS: 1.008 -2.37 1.016 -122.94 1.012 117.76 MAG/ANG

-LD: .00 .00 .00 .00 .00 .00 kW/kVR

kVll 24.900 CAP: .00 .00 .00 kVR

FROM NODE 816 .....: 35.87 -10.70 39.82 -129.02 38.05 116.25 AMP/DG

<824 > LOSS= 14.181: ( 4.312) ( 5.444) ( 4.425) kW

TO NODE 826 .......: 3.10 -148.92 AMP/DG

<826 > LOSS= .008: ( .008) kW

TO NODE 828 .......: 35.87 -10.70 36.93 -127.39 38.05 116.25 AMP/DG

<828 > LOSS= 1.108: ( .361) ( .393) ( .354) kW

---------------------*--------A-------*-------B-------*-------C-------*--------

NODE: 826 VOLTS: 1.016 -122.94 MAG/ANG

-LD: .00 .00 kW/kVR

kVll 24.900 CAP: .00 kVR

FROM NODE 824 .....: .00 .00 AMP/DG

<826 > LOSS= .008: ( .008) kW

- R A D I A L P O W E R F L O W --- DATE: 6-24-2004 AT 16:34:32 HOURS ---

SUBSTATION: IEEE 34; FEEDER: IEEE 34

-------------------------------------------------------------------------------

NODE VALUE PHASE A PHASE B PHASE C UNT O/L<

(LINE A) (LINE B) (LINE C) 60.%

---------------------*--------A-------*-------B-------*-------C-------*--------

NODE: 828 VOLTS: 1.007 -2.38 1.015 -122.95 1.011 117.75 MAG/ANG

-LD: .00 .00 .00 .00 .00 .00 kW/kVR

kVll 24.900 CAP: .00 .00 .00 kVR

FROM NODE 824 .....: 35.87 -10.72 36.93 -127.41 37.77 116.42 AMP/DG

<828 > LOSS= 1.108: ( .361) ( .393) ( .354) kW

TO NODE 830 .......: 35.87 -10.72 36.93 -127.41 37.77 116.42 AMP/DG

<830 > LOSS= 26.587: ( 8.443) ( 9.214) ( 8.930) kW

---------------------*--------A-------*-------B-------*-------C-------*--------

NODE: 830 VOLTS: .989 -2.63 .998 -123.39 .994 117.25 MAG/ANG

D-LD: 9.95 4.98 9.86 4.93 24.55 9.82 kW/kVR

kVll 24.900 Y CAP: .00 .00 .00 kVR

FROM NODE 828 .....: 35.43 -11.06 36.91 -127.92 37.79 115.96 AMP/DG

<830 > LOSS= 26.587: ( 8.443) ( 9.214) ( 8.930) kW

TO NODE 854 .......: 34.22 -9.97 36.19 -127.47 36.49 116.26 AMP/DG

<854 > LOSS= .635: ( .197) ( .227) ( .211) kW

---------------------*--------A-------*-------B-------*-------C-------*--------

NODE: 854 VOLTS: .989 -2.64 .998 -123.40 .993 117.24 MAG/ANG

-LD: .00 .00 .00 .00 .00 .00 kW/kVR

kVll 24.900 CAP: .00 .00 .00 kVR

FROM NODE 830 .....: 34.23 -9.99 36.19 -127.48 36.49 116.25 AMP/DG

<854 > LOSS= .635: ( .197) ( .227) ( .211) kW

TO NODE 852 .......: 34.23 -9.99 35.93 -127.72 36.49 116.25 AMP/DG

<852 > LOSS= 44.798: ( 13.996) ( 15.778) ( 15.023) kW

TO NODE 856 .......: .31 -98.70 AMP/DG

<856 > LOSS= .001: ( .001) kW

---------------------*--------A-------*-------B-------*-------C-------*--------

NODE: 852 VOLTS: .958 -3.11 .968 -124.18 .964 116.33 MAG/ANG

-LD: .00 .00 .00 .00 .00 .00 kW/kVR

kVll 24.900 CAP: .00 .00 .00 kVR

FROM NODE 854 .....: 34.35 -11.00 35.90 -128.66 36.52 115.41 AMP/DG

<852 > LOSS= 44.798: ( 13.996) ( 15.778) ( 15.023) kW

TO NODE RG11 .<VRG>.: 34.35 -11.00 35.90 -128.66 36.52 115.41 AMP/DG

<RG11 > LOSS= .000: ( .000) ( .000) ( .000) kW

---------------------*--------A-------*-------B-------*-------C-------*--------

NODE: RG11 VOLTS: 1.036 -3.11 1.035 -124.18 1.036 116.33 MAG/ANG

-LD: .00 .00 .00 .00 .00 .00 kW/kVR

kVll 24.900 CAP: .00 .00 .00 kVR

FROM NODE 852 <VRG>: 31.77 -11.00 33.59 -128.66 33.98 115.41 AMP/DG

<RG11 > LOSS= .000: ( .000) ( .000) ( .000) kW

TO NODE 832 .......: 31.77 -11.00 33.59 -128.66 33.98 115.41 AMP/DG

<832 > LOSS= .011: ( .003) ( .004) ( .004) kW

- R A D I A L P O W E R F L O W --- DATE: 6-24-2004 AT 16:34:32 HOURS ---

SUBSTATION: IEEE 34; FEEDER: IEEE 34

-------------------------------------------------------------------------------

NODE VALUE PHASE A PHASE B PHASE C UNT O/L<

(LINE A) (LINE B) (LINE C) 60.%

---------------------*--------A-------*-------B-------*-------C-------*--------

NODE: 832 VOLTS: 1.036 -3.11 1.035 -124.18 1.036 116.33 MAG/ANG

-LD: .00 .00 .00 .00 .00 .00 kW/kVR

kVll 24.900 CAP: .00 .00 .00 kVR

FROM NODE RG11 .....: 31.77 -11.00 33.59 -128.66 33.98 115.41 AMP/DG

<832 > LOSS= .011: ( .003) ( .004) ( .004) kW

TO NODE 858 .......: 21.31 .47 23.40 -116.89 24.34 128.36 AMP/DG

<858 > LOSS= 2.467: ( .643) ( .997) ( .827) kW

TO NODE XF10 .......: 11.68 -32.29 11.70 -152.73 11.61 87.39 AMP/DG <

<XF10 > LOSS= 9.625: ( 3.196) ( 3.241) ( 3.187) kW

---------------------*--------A-------*-------B-------*-------C-------*--------

NODE: 858 VOLTS: 1.034 -3.17 1.032 -124.28 1.034 116.22 MAG/ANG

-LD: .00 .00 .00 .00 .00 .00 kW/kVR

kVll 24.900 CAP: .00 .00 .00 kVR

FROM NODE 832 .....: 20.86 .86 23.13 -116.39 24.02 128.48 AMP/DG

<858 > LOSS= 2.467: ( .643) ( .997) ( .827) kW

TO NODE 834 .......: 20.73 1.01 23.13 -116.39 24.02 128.48 AMP/DG

<834 > LOSS= 2.798: ( .717) ( 1.145) ( .936) kW

TO NODE 864 .......: .14 -22.82 AMP/DG

<864 > LOSS= .000: ( .000) kW

---------------------*--------A-------*-------B-------*-------C-------*--------

NODE: 834 VOLTS: 1.031 -3.24 1.029 -124.39 1.031 116.09 MAG/ANG

-LD: .00 .00 .00 .00 .00 .00 kW/kVR

kVll 24.900 CAP: .00 .00 .00 kVR

FROM NODE 858 .....: 20.29 2.18 22.37 -116.07 23.23 130.06 AMP/DG

<834 > LOSS= 2.798: ( .717) ( 1.145) ( .936) kW

TO NODE 842 .......: 14.75 34.68 16.30 -95.63 15.12 151.05 AMP/DG

<842 > LOSS= .064: ( .015) ( .032) ( .017) kW

TO NODE 860 .......: 11.16 -43.05 9.09 -154.82 10.60 99.34 AMP/DG

<860 > LOSS= .141: ( .021) ( .104) ( .017) kW

---------------------*--------A-------*-------B-------*-------C-------*--------

NODE: 842 VOLTS: 1.031 -3.25 1.029 -124.39 1.031 116.09 MAG/ANG

-LD: .00 .00 .00 .00 .00 .00 kW/kVR

kVll 24.900 CAP: .00 .00 .00 kVR

FROM NODE 834 .....: 14.74 34.67 16.30 -95.64 15.12 151.03 AMP/DG

<842 > LOSS= .064: ( .015) ( .032) ( .017) kW

TO NODE 844 .......: 14.74 34.67 16.30 -95.64 15.12 151.03 AMP/DG

<844 > LOSS= .306: ( .068) ( .156) ( .083) kW

- R A D I A L P O W E R F L O W --- DATE: 6-24-2004 AT 16:34:32 HOURS ---

SUBSTATION: IEEE 34; FEEDER: IEEE 34

-------------------------------------------------------------------------------

NODE VALUE PHASE A PHASE B PHASE C UNT O/L<

(LINE A) (LINE B) (LINE C) 60.%

---------------------*--------A-------*-------B-------*-------C-------*--------

NODE: 844 VOLTS: 1.031 -3.27 1.029 -124.42 1.031 116.06 MAG/ANG

Y-LD: 143.41 111.54 142.97 111.20 143.51 111.62 kW/kVR

kVll 24.900 Y CAP: 106.23 105.90 106.31 kVR

FROM NODE 842 .....: 14.47 37.12 16.29 -95.71 15.11 150.97 AMP/DG

<844 > LOSS= .306: ( .068) ( .156) ( .083) kW

TO NODE 846 .......: 9.83 78.88 9.40 -63.87 9.40 -170.67 AMP/DG

<846 > LOSS= .323: ( .043) ( .212) ( .068) kW

---------------------*--------A-------*-------B-------*-------C-------*--------

NODE: 846 VOLTS: 1.031 -3.32 1.029 -124.46 1.031 116.01 MAG/ANG

-LD: .00 .00 .00 .00 .00 .00 kW/kVR

kVll 24.900 CAP: .00 .00 .00 kVR

FROM NODE 844 .....: 9.76 78.80 9.40 -52.54 9.78 -161.93 AMP/DG

<846 > LOSS= .323: ( .043) ( .212) ( .068) kW

TO NODE 848 .......: 9.76 78.80 9.40 -52.54 9.78 -161.93 AMP/DG

<848 > LOSS= .048: ( .007) ( .031) ( .010) kW

---------------------*--------A-------*-------B-------*-------C-------*--------

NODE: 848 VOLTS: 1.031 -3.32 1.029 -124.47 1.031 116.00 MAG/ANG

D-LD: 20.00 16.00 20.00 16.00 20.00 16.00 kW/kVR

kVll 24.900 Y CAP: 159.43 158.86 159.56 kVR

FROM NODE 846 .....: 9.76 78.79 9.77 -42.47 9.78 -161.94 AMP/DG

<848 > LOSS= .048: ( .007) ( .031) ( .010) kW

---------------------*--------A-------*-------B-------*-------C-------*--------

NODE: 860 VOLTS: 1.030 -3.24 1.029 -124.39 1.031 116.09 MAG/ANG

Y-LD: 20.00 16.00 20.00 16.00 20.00 16.00 kW/kVR

kVll 24.900 Y CAP: .00 .00 .00 kVR

FROM NODE 834 .....: 5.87 -33.62 7.68 -156.52 5.29 86.10 AMP/DG

<860 > LOSS= .141: ( .021) ( .104) ( .017) kW

TO NODE 836 .......: 4.16 -30.19 5.96 -154.63 3.60 90.25 AMP/DG

<836 > LOSS= .039: ( -.035) ( .103) ( -.028) kW

---------------------*--------A-------*-------B-------*-------C-------*--------

NODE: 836 VOLTS: 1.030 -3.23 1.029 -124.39 1.031 116.09 MAG/ANG

-LD: .00 .00 .00 .00 .00 .00 kW/kVR

kVll 24.900 CAP: .00 .00 .00 kVR

FROM NODE 860 .....: 1.49 -19.83 4.42 -150.74 1.74 68.08 AMP/DG

<836 > LOSS= .039: ( -.035) ( .103) ( -.028) kW

TO NODE 840 .......: 1.50 -20.01 2.33 -151.97 1.75 68.00 AMP/DG

<840 > LOSS= .002: ( -.014) ( .026) ( -.010) kW

TO NODE 862 .......: .00 .00 2.09 -149.38 .00 .00 AMP/DG

<862 > LOSS= .000: ( -.005) ( .009) ( -.004) kW

- R A D I A L P O W E R F L O W --- DATE: 6-24-2004 AT 16:34:32 HOURS ---

SUBSTATION: IEEE 34; FEEDER: IEEE 34

-------------------------------------------------------------------------------

NODE VALUE PHASE A PHASE B PHASE C UNT O/L<

(LINE A) (LINE B) (LINE C) 60.%

---------------------*--------A-------*-------B-------*-------C-------*--------

NODE: 840 VOLTS: 1.030 -3.23 1.029 -124.39 1.031 116.09 MAG/ANG

Y-LD: 9.27 7.21 9.26 7.20 9.28 7.22 kW/kVR

kVll 24.900 Y CAP: .00 .00 .00 kVR

FROM NODE 836 .....: .79 -41.11 .79 -162.26 .79 78.21 AMP/DG

<840 > LOSS= .002: ( -.014) ( .026) ( -.010) kW

---------------------*--------A-------*-------B-------*-------C-------*--------

NODE: 862 VOLTS: 1.030 -3.23 1.029 -124.39 1.031 116.09 MAG/ANG

-LD: .00 .00 .00 .00 .00 .00 kW/kVR

kVll 24.900 CAP: .00 .00 .00 kVR

FROM NODE 836 .....: .00 .00 2.09 -149.50 .00 .00 AMP/DG

<862 > LOSS= .000: ( -.005) ( .009) ( -.004) kW

TO NODE 838 .......: 2.09 -149.50 AMP/DG

<838 > LOSS= .004: ( .004) kW

---------------------*--------A-------*-------B-------*-------C-------*--------

NODE: 838 VOLTS: 1.029 -124.39 MAG/ANG

-LD: .00 .00 kW/kVR

kVll 24.900 CAP: .00 kVR

FROM NODE 862 .....: .00 .00 AMP/DG

<838 > LOSS= .004: ( .004) kW

---------------------*--------A-------*-------B-------*-------C-------*--------

NODE: 864 VOLTS: 1.034 -3.17 MAG/ANG

-LD: .00 .00 kW/kVR

kVll 24.900 CAP: .00 kVR

FROM NODE 858 .....: .00 .00 AMP/DG

<864 > LOSS= .000: ( .000) kW

---------------------*--------A-------*-------B-------*-------C-------*--------

NODE: XF10 VOLTS: 1.000 -4.63 .998 -125.73 1.000 114.82 MAG/ANG

-LD: .00 .00 .00 .00 .00 .00 kW/kVR

kVll 4.160 CAP: .00 .00 .00 kVR

FROM NODE 832 .....: 69.90 -32.29 70.04 -152.73 69.50 87.39 AMP/DG <

<XF10 > LOSS= 9.625: ( 3.196) ( 3.241) ( 3.187) kW

TO NODE 888 .......: 69.90 -32.29 70.04 -152.73 69.50 87.39 AMP/DG

<888 > LOSS= .000: ( .000) ( .000) ( .000) kW

---------------------*--------A-------*-------B-------*-------C-------*--------

NODE: 888 VOLTS: 1.000 -4.64 .998 -125.73 1.000 114.82 MAG/ANG

-LD: .00 .00 .00 .00 .00 .00 kW/kVR

kVll 4.160 CAP: .00 .00 .00 kVR

FROM NODE XF10 .....: 69.90 -32.29 70.04 -152.73 69.50 87.39 AMP/DG

<888 > LOSS= .000: ( .000) ( .000) ( .000) kW

TO NODE 890 .......: 69.90 -32.29 70.04 -152.73 69.50 87.39 AMP/DG

<890 > LOSS= 32.760: ( 11.638) ( 9.950) ( 11.173) kW

- R A D I A L P O W E R F L O W --- DATE: 6-24-2004 AT 16:34:32 HOURS ---

SUBSTATION: IEEE 34; FEEDER: IEEE 34

-------------------------------------------------------------------------------

NODE VALUE PHASE A PHASE B PHASE C UNT O/L<

(LINE A) (LINE B) (LINE C) 60.%

---------------------*--------A-------*-------B-------*-------C-------*--------

NODE: 890 VOLTS: .917 -5.19 .924 -126.78 .918 113.98 MAG/ANG

D-LD: 139.11 69.55 137.56 68.78 137.01 68.50 kW/kVR

kVll 4.160 Y CAP: .00 .00 .00 kVR

FROM NODE 888 .....: 69.91 -32.31 70.05 -152.75 69.51 87.37 AMP/DG

<890 > LOSS= 32.760: ( 11.638) ( 9.950) ( 11.173) kW

---------------------*--------A-------*-------B-------*-------C-------*--------

NODE: 856 VOLTS: .998 -123.41 MAG/ANG

-LD: .00 .00 kW/kVR

kVll 24.900 CAP: .00 kVR

FROM NODE 854 .....: .00 .00 AMP/DG

<856 > LOSS= .001: ( .001) kW

转载请注明出处： apollocode » IEEE34节点算例

文件列表(部分)

名称	大小	修改日期
feeder34.zip	78.16 KB	2020-09-26
IEEE34_BusXY.csv	0.20 KB	2015-08-05
ieee34Mod1.dss	2.35 KB	2018-04-06
ieee34Mod2.dss	2.61 KB	2018-04-06
IEEELineCodes.DSS	2.80 KB	2016-01-08
nmsu_linecode2_ABC.txt	0.55 KB	2015-08-05
Run_IEEE34Mod1.dss	0.58 KB	2017-04-12
Run_IEEE34Mod2.dss	0.61 KB	2017-04-12
微信图片_20200926143808.png	8.23 KB	2020-09-26
