应用介绍

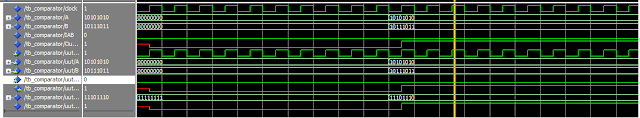

此项目是8位比较器的VHDL代码。这项目介绍了一个8位比较器的VHDL代码。 74F521是一个8位身份比较器，如果两个8位输入匹配，它将提供低电平输出。此附件包括：真值表和比较器的符号【真值表、比较器的逻辑符号、逻辑图（来自74L521的数据表）】；比较器的VHDL代码；比较器的Testbench VHDL代码；比较器的仿真波形。本人在预览器展示了比较器的仿真波形；同时在下方展示了比较器的VHDL代码；如想了解更多请下载附件。

library IEEE;
use IEEE.STD_LOGIC_1164.ALL;
-- VHDL project: VHDL code for comparator
-- fpga4student.com FPGA projects, Verilog projects, VHDL projects

entity comparator is
port (
      clock: in std_logic;
      -- clock for synchronization
      A,B: in std_logic_vector(7 downto 0);
      -- Two inputs
      IAB: in std_logic; -- Expansion input ( Active low)
      Output: out std_logic -- Output = 0 when A = B
 );
end comparator;
architecture Behavioral of comparator is
signal AB: std_logic_vector(7 downto 0); -- temporary variables
signal Result: std_logic;
begin
 AB(0) <= (not A(0)) xnor (not B(0));
        -- combinational circuit
 AB(1) <= (not A(1)) xnor (not B(1));
 AB(2) <= (not A(2)) xnor (not B(2));
 AB(3) <= (not A(3)) xnor (not B(3));
 AB(4) <= (not A(4)) xnor (not B(4));
 AB(5) <= (not A(5)) xnor (not B(5));
 AB(6) <= (not A(6)) xnor (not B(6));
 AB(7) <= (not A(7)) xnor (not B(7));
 -- fpga4student.com FPGA projects, Verilog projects, VHDL projects
 process(clock)
 begin
 if(rising_edge(clock))then
   if(AB = x"FF" and IAB = '0') then
         -- check whether A = B and IAB =0 or not
            Result <= '0';
    else
     Result <= '1';
    end if;
 end if;
 end process;
 Output <= Result;
end Behavioral;
